Danfoss

Danfoss:

Brazed Plate Heat Exchangers


EnFusion™ B3-014 brazed plate heat exchanger BPHE


Introduction:

B3-014 EnFusion™ brazed plate heat exchanger
BPHE is the ideal choice for air driers, chillers,
heat pump, economizers, desuperheaters and
can be used for numerous other applications.
The heat exchanger is designed to combine
high thermal efficiency with energy savings.
Capacity: 1.7 ~ 17.1 KBtu/h.

Features: - Compact design
- High efficiency
- Low internal hold-up volume
- Flexible design
- Solder and threaded connection types
- Wide variety of connections styles and sizes
- 100% inspected

Approvals: - CE0062 certificate according (PED) 97/23/EC
- UL
- ISO 9000 1: 2000- 100% inspected

Product Options: Adapter/Temperature Monitoring
High Pressure
Nickel Brazed
Back to Back
Air Drier

Material Specification: The standard plate material is stainless steel
AISI 304.
For other material (AISI 316L, SMO 254) please
contact your local sales organization.

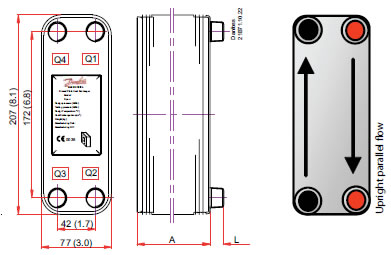

Dimensional Data: Flat front cover plate

Technical Data: Design pressure
435 psi ( A type ) Design temperature -321 ~ + 392˚F
653 psi ( B type ) Plate type H, L, M
Testing pressure
653 psi ( A type ) Heat load 1.7 ~ 17.1 KBtu/h
979 psi ( B type ) Number of max plates 60

If you have any questions about how Danfoss brazed plate heat exchangers will benefit your application please contact us:
1-888-226-8522
EnFusion B3-014
