Danfoss

Danfoss:

Brazed Plate Heat Exchangers


EnFusion™ B3-014B brazed plate heat exchanger BPHE


Introduction:

B3-014B EnFusion™ brazed plate heat
exchanger BPHE is the ideal choice for chillers,
heat pumps, economizers, desuperheaters
and can be used for numerous other applications.
The heat exchanger is designed to
combine high thermal efficiency with energy
savings.
Capacity: 1.7 ~ 17.1 KBtu/h.

Features: - Compact design
- High efficiency
- Flexible in size
- Connection in solder or threaded
- Flexible connection programme
- 100 % inspected

Approvals: - CE0062 certificate according (PED) 97/23/EC
- ISO 9000 1: 2000

Product Options: Adapter/Temperature Monitoring

Material Specification: The standard plate material is stainless steel
AISI 304.
For other material (AISI 316L, SMO 254) please
contact your local sales organization.

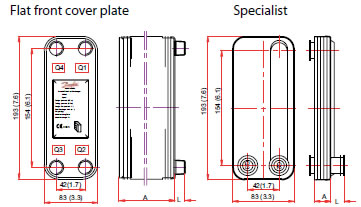

Dimensional Data:

Technical Data: Design pressure
145 psi ( A type ) Design temperature -321 ~ + 392˚F
435 psi ( B type ) Plate type H
Testing pressure
218 psi ( A type ) Heat load 1.7 ~ 17.1 KBtu/h
653 psi ( B type ) Number of max plates 50

If you have any questions about how Danfoss brazed plate heat exchangers will benefit your application please contact us:
1-888-226-8522
EnFusion B3-012
