Danfoss

Danfoss:

Brazed Plate Heat Exchangers


EnFusion™ B3-048 brazed plate heat exchanger BPHE


Introduction:

The complete range of EnFusion™ brazed
plate heat exchangers BPHE for refrigeration
and A/C application is the ideal choice
for many chillers, heat pumps, economizers,
desuperheaters and can be used for numerous
other applications. The heat exchanger
plate pattern is designed to combine high
thermal efficiency with energy savings. BPHE
B3-048 as a special patented design of different
corrugation depths on the same plate. It
allows larger water flow rates, low pressure
drop and lower refrigerant charge.
Capacity: 102.4 ~ 273.0 KBtu/h.

Features: - Compact design
- High efficiency
- Flexible in size
- Connection in solder or threaded
- Flexible connection programme
- 100 % inspected

Approvals: - CE0062 certificate according (PED) 97/23/EC
- UL
- ISO 9000 1: 2000

Product Options: -Nickel Brazed
-Adapter/Temperature Monitoring
-Dual Circuit
-High Pressure

Material Specification: The standard plate material is stainless steel
AISI 316L.

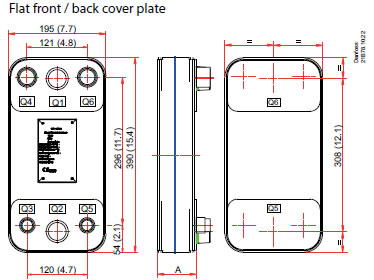

Dimensional Data:

Technical Data: Design pressure
435 psi ( A type ) Design temperature -321 ~ + 392˚F
653 psi ( B type ) Plate type H
Testing pressure
653 psi ( A type ) Heat load 102.4 ~ 273.0 KBtu/h
979 psi ( B type ) Number of max plates 118

If you have any questions about how Danfoss brazed plate heat exchangers will benefit your application please contact us:
1-888-226-8522
