Danfoss

Danfoss:

Brazed Plate Heat Exchangers


EnFusion™ B3-012 brazed plate heat exchanger BPHE


Introduction:

B3-052 EnFusion™ brazed plate heat exchanger
BPHE is the ideal choice for chillers, heat
pumps, economizers, desuperheaters and can
be used for numerous other applications. The
heat exchanger is designed to combine high
thermal efficiency with energy savings.
Capacity: 34.1 ~ 204.7 KBtu/h.

Features: - Compact design
- High efficiency
- Flexible in size
- Connection in solder or threaded
- Flexible connection programme
- 100 % inspected

Approvals: - CE0062 certificate according (PED) 97/23/EC
- UL
- ISO 9000 1: 2000

Product Options: -Nickel Brazed
-Adapter/Temperature Monitoring
-High Pressure
-Distributor

Material Specification: The standard plate material is stainless steel
AISI 316.

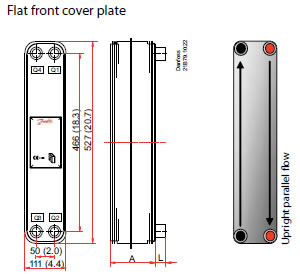

Dimensional Data:

Technical Data: Design pressure
435 psi ( A type ) Design temperature -321 ~ + 392˚F
653 psi ( B type ) Plate type H, L, M
Testing pressure
653 psi ( A type ) Heat load 34.1 ~ 204.7 KBtu/h
979 psi bar ( B type ) Number of max plates 150

If you have any questions about how Danfoss brazed plate heat exchangers will benefit your application please contact us:
1-888-226-8522
