Danfoss

Danfoss:

Brazed Plate Heat Exchangers


EnFusion™ B3-095 brazed plate heat exchanger BPHE


Introduction:

B3-095 EnFusion™ brazed plate heat exchanger
BPHE is the ideal choice for chillers, heat
pumps, economizers, desuperheaters and can
be used for numerous other applications. The
heat exchanger is designed to combine high
thermal efficiency with energy savings.
Capacity: 102.4 ~ 682.4 KBtu/h.

Features: - Compact design
- High efficiency
- Flexible in size
- Connection in solder or threaded
- Flexible connection programme
- 100 % inspected

Approvals: - CE0062 certificate according (PED) 97/23/EC
- UL
- ISO 9000 1: 2000

Product Options: -Distributor
-Adapter/Temperature Monitoring
-High Pressure
-Back to Back

Material Specification: The standard plate material is stainless steel
AISI 316.

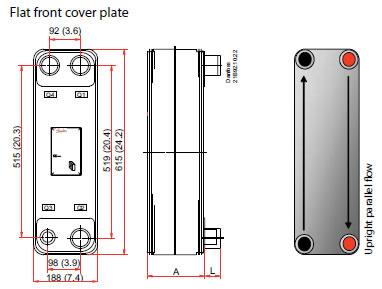

Dimensional Data:

Technical Data: Design pressure
435 psi ( A type ) Design temperature -321 ~ + 392˚F
653 psi ( B type ) Plate type H, L, M
Testing pressure
653 psi ( A type ) Heat load 102.4 ~ 682.4 KBtu/h
979 psi ( B type ) Number of max plates 250

If you have any questions about how Danfoss brazed plate heat exchangers will benefit your application please contact us:
1-888-226-8522
