Danfoss

Danfoss:

Brazed Plate Heat Exchangers


EnFusion™ B3-260B brazed plate heat exchanger BPHE


Introduction:

B3-260B EnFusion™ brazed plate heat
exchanger BPHE is the ideal choice for fluid
to fluid applications such as oil cooling. The
heat exchanger is designed to combine high
thermal efficiency with energy savings.
Capacity: 511.8 ~ 1706.0 KBtu/h.

Features: - Compact design
- High efficiency
- Flexible in size
- Connection in solder or clamp
- Flexible connection programme
- 100 % inspected

Approvals: - CE0062 certificate according (PED) 97/23/EC
- ISO 9000 1: 2000

Product Options: Adapter/Temperature Monitoring

Material Specification: The standard plate material is stainless steel
AISI 316.
For other material (SMO 254) please contact
your local sales organization.

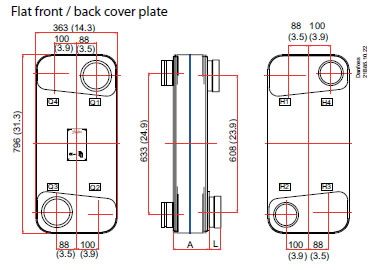

Dimensional Data:

Technical Data: Design pressure 290 psi ( A type )
Design temperature -321 ~ + 392˚F
Plate type H
Testing pressure 435 psi ( A type )
Heat load 511.8 ~ 1706.0 KBtu/h
Number of max plates 250

If you have any questions about how Danfoss brazed plate heat exchangers will benefit your application please contact us:
1-888-226-8522
