Heat Exchangers: Air Cooled Oil Coolers

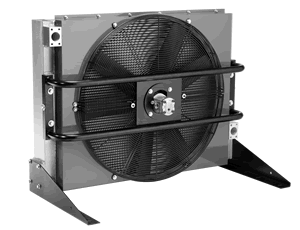

Industrial Oil Cooler

Fluid Cooling: Industrial BOL Series with Brazed Aluminum

BOL exchanger units provide outstanding heat dissipation in industrial oil cooling applications. Select from our broad line of standard units that lead the industry as the most rugged, light weight and compact solution for extream heat loads. Available with AC or hydraulic fan motors, all feature proven brazed aluminum P-BAR plate and bar core technology engineered with an aggressive turbulator thatproduces ultra high heat transfer.

Choose BOL standard units with flow rates ranging from 2gpm to 200gpm.

For questions on this and other industrial oil coolers,
or for a quote please contact us: 1-888-226-8522

Features

	Plate and Bar Brazed aluminum core
	Rugged, lightweight, and compact
	Provides the best heat transfer per given envelope size while minimizing pressure drop
	Air-side fin design minimizes fouling and static pressure ensuring long-term, reliable performance
	Welded aluminum fittings/ports and manifolds ensure structural integrity
	Standard SAE ports – NPT and BSPP ports available
	Customized units are available to meet your specific performance requirements
	Additional capabilities for radiators, charge-air-coolers, condensers, and multi-circuit units
	T-Bar core optional for high viscosity oils or other highly fouling fluids.
	Low Noise Option Available

Materials

	Mounting Feet - Steel
	Standard Core - Brazed Aluminum Plate and Bar (T-Bar is optional)
	Tanks - 5052 Aluminum Nose Bar & Little Bar - 3003-H Aluminum Air Fin, Plate, Turbulator & End Plate 3003-O Aluminum
	Fanguard & Shroud - Steel
	Connectors - Aluminum
	Fan - Aluminum Hub, Plastic Blades
	Motor - TEFC & IEC

Rating

	Maximum Operating Pressure 250psi (17 BAR)
	Maximum Operating Temperature 300F (150C)

Fluid Compatibility

	Petroleum / mineral oils
	oil / water emulsion
	water / ethylene glycol

Features

	Height		Width		Depth
Model	Inches	mm	Inches	mm	Inches	mm
BOL-4	10.09	256.3	12.32	312.9	7.54	191.5
BOL-8	12.44	316	15.75	400.1	14.72	373.9
BOL-16	16.24	412.5	19.69	500.1	16.16	410.5
BOL-30	20.69	525.5	26.38	670.0	18.23	463.0
BOL-400	19.83	503.7	22.45	570.2	18.80	477.5
BOL-725	24.37	619	30.32	770.1	18.6	472.4
BOL-950	28.82	732	37.03	940.6	22.69	579.3
BOL-1200	28.82	732	40.96	1040.4	24.07	611.4
BOL-1600	36.89	937	40.96	1040.4	25.45	646.4
BOL-2000	39.53	1004.1	50.79	1290.1	26.77	680
