Features: |
| |
| |
Compact Size
|
| |
High Efficiency Finned Bundle Design
|
| |
Low Cost
|
| |
Optional Patented Built-in
Surge-Cushion® Relief Bypass |
| |
3/16” Tube Size
|
| |
Heat Removal up to 400 Horsepower
(300 kW) |
| |
Oil Flow rates up to 80 U.S. GPM (300
Liters/min.) |
| |
Large Oil Connections for Minimum
Entering and Exiting Flow Restriction |
| |
Removable End Bonnets for easy
tube cleaning |
| |
Mounting Brackets Designed so
that Cooler can be Rotated in 90°
Increments |
| |
High Pressure Ratings |
| |
Complete Line of Accessories Available |
|
|
| |
Serge-Cushion (option): |
| |
| |
The SURGE-CUSHION® is a protective device (patented) designed to internally bypass
a portion of the oil flow during cold start
conditions, or when sudden fl ow surges
temporarily exceed the maximum flow allowed
for a given cooler. This device may replace an
external bypass valve, but it is not intended to
bypass the total oil flow.
|
|
|
|
| |
Maximum Flow Rates: |
| |
Unit
Size |
Shell
Side
GPM |
Tube Side GPM |

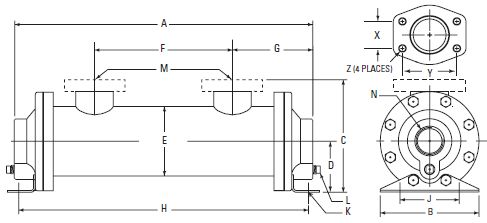

One
Pass |

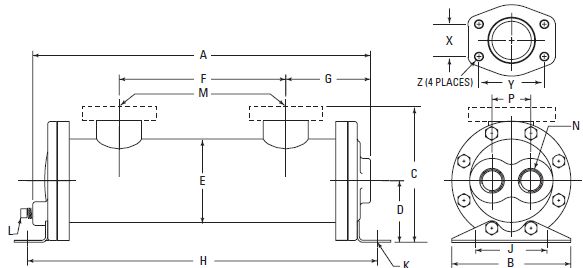

Two
Pass |

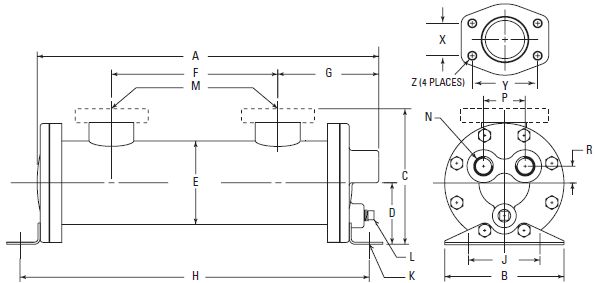

Four
Pass |
| 500 |
20 |
13 |
6 |
n/a |
| 700 |
60 |
24 |
12 |
6 |
| 1000 |
80 |
56 |
28 |
14 |
|
|
|
|
|
| |
Materials: |
| |
| |
Shell Steel
|
| |
Tube Sheets Steel
|
| |
Baffles Steel
|
| |
Mounting Brackets Steel
|
| |
Gaskets Nitrile Rubber/Cellulose Fiber
|
| |
Nameplate Aluminum Foil
|
| |
Tubes Copper
|
| |
Fins Aluminum
|
| |
End Caps Grey Iron |
|
|
| |
Ratings: |
| |
| |
Operating Pressure/Shell side 500 psi
|
| |
Operating Pressure/Tubeshell side 150 psi
|
| |
Operating Temperature 250° F |
|
|
|
