Shell & Tube
Heat Exchangers |
| |
 |
|
Shell and Tube heat exchangers are the most common type of heat exchanger in oil refineries and other large chemical processes, and is often suited for higher-pressure applications. As its name implies, this type of heat exchanger consists of a shell (pressure vessel) with a bundle of tubes inside with fluid running through the tubes, and another fluid flow over the tubes (through the shell) to transfer heat between the two fluids. The set of tubes is called a tube bundle, and may be composed by several types of tubes: plain, longitudinally finned, etc. |
|
| |
| |
Materials & Construction: |
| |
Pre-engineered
Fixed Tubesheet
Copper Alloy
Stainless Steel
Carbon Steel
Non-Ferrous Copper Alloy
Inconel/Incoloy
Nickel/Monel
Hastelloy®
Titanium
|
U-Tube
CuNi
316 S.S Tube Options
1, 2 or 4 Passes
Large and Small Sq/Ft Coverage
Inline |
|
| |
| |
Manufactured By: (complete list) |
| |
Alco Twin
Bos-Hatten
Cooling Technology
Enerquip
Hexeco
American Industrial |
Thermal Transfer Products / ThermaSys
Young- Touchstone
Basco
ITT
Hayden
Modine
|
|
| |

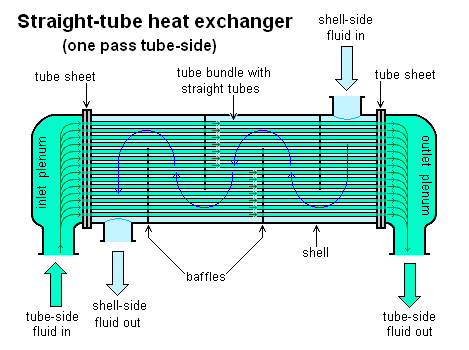

Typical Shell & Tube Layout:
 |
| |
|
 |
|
