Shell & Tube Applications

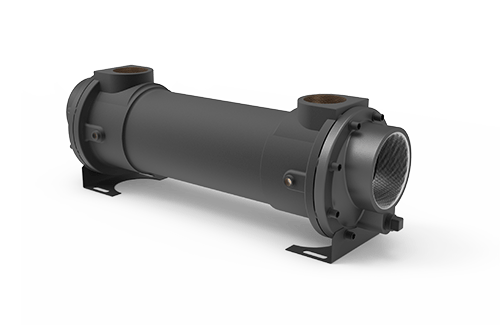

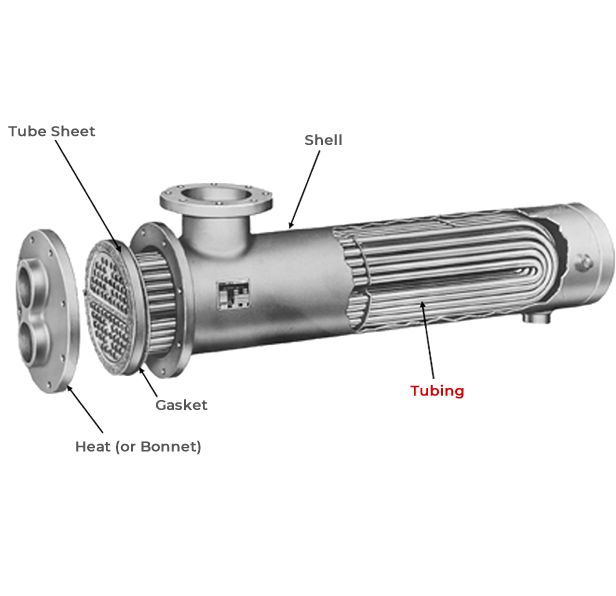

These exchangers consist of a series of tubes housed within a cylindrical shell. One fluid flows through the tubes while another fluid flows outside the tubes but inside the shell, facilitating heat transfer between the two fluids.
This design is particularly effective for handling high-pressure fluids and large temperature differentials, making it ideal for industries such as chemical processing, power generation, and oil refining.
The modular nature of shell and tube heat exchangers allows for easy maintenance and scalability, enhancing their appeal in complex systems. Additionally, they can be customized with different materials and configurations to meet specific operational requirements, ensuring optimal performance and longevity.
Whether for heating, cooling, or condensing processes, shell and tube heat exchangers provide a reliable and efficient solution to meet diverse thermal management needs.
Materials & Construction
- Carbon Steel: A cost-effective material commonly used for heat exchangers due to its excellent mechanical properties and good resistance to wear. However, carbon steel may require protective coatings or treatments to prevent corrosion.
- Brass and Copper-Nickel: Are known for their excellent thermal conductivity and corrosion resistance, particularly in marine environments, brass and copper-nickel may be more expensive than carbon steel, but the added expense is often worth it.
- 304 Stainless Steel: Highly durable and resistant to oxidation and corrosion, 304 stainless steel is a versatile choice for various applications, although it is less resistant to chloride-induced stress corrosion cracking.
- 316 Stainless Steel: Offers enhanced corrosion resistance compared to 304 stainless, particularly against chlorides and other industrial solvents, 316 stainless steel is ideal for harsh environments.
- Duplex Stainless Steel: Combines high strength and excellent corrosion resistance, duplex stainless steel is suitable for extreme environments and high-stress applications.
- Titanium: Is highly valued for its exceptional corrosion resistance, titanium is lightweight and strong, making it ideal for extremely harsh environments but also one of the most expensive options.
